Postby socalmoto » Thu Apr 07, 2011 8:15 pm

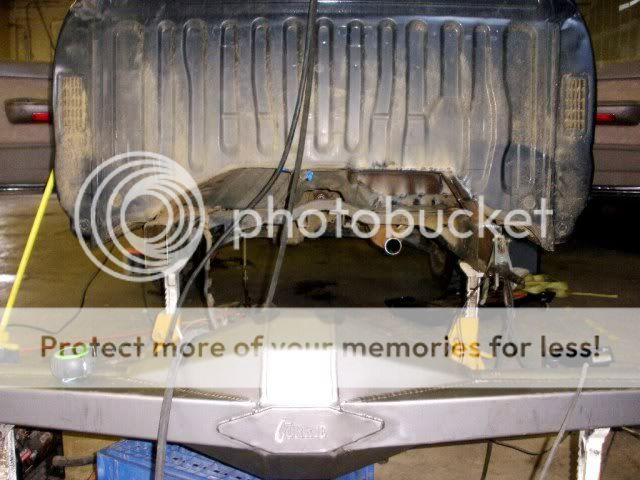

Thought id toss up the latest project ive got going on. Its been a while since ive had a nice build up of something. So it showed up and first thing was to chop it. It was funny cause when i unbolted the strap downs for the fuel cell it released pressure and about 4 gallons of water starting pouring out. It took about 20min for the cell to dump everything and i couldnt believe how much kept coming out.

With a nice currie FF 35 spline axle, we will be making a beefy driveshaft and ditch the stock tacoma double cardan joint so different link geometry is being used than on our race truck. I wanted to keep the upper links long to keep the IC more consistent which will result in better handling, but i had to make more room for the upper link so i raised the passenger side of the floor.

Before

After

He also wanted a sub box hold down in case of a crash while playing, it wont bounce around.

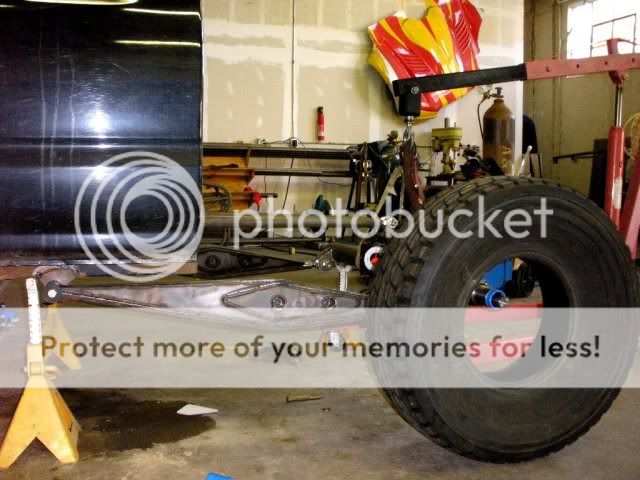

Next was to tack some mounts on to locate the links where i had designed them to go in solidworks. The trailing arms were a set i made and had in the shop for mockup. The newer ones that will be run on the truck are getting cut soon. They are they same design, but much more detailed side plates.

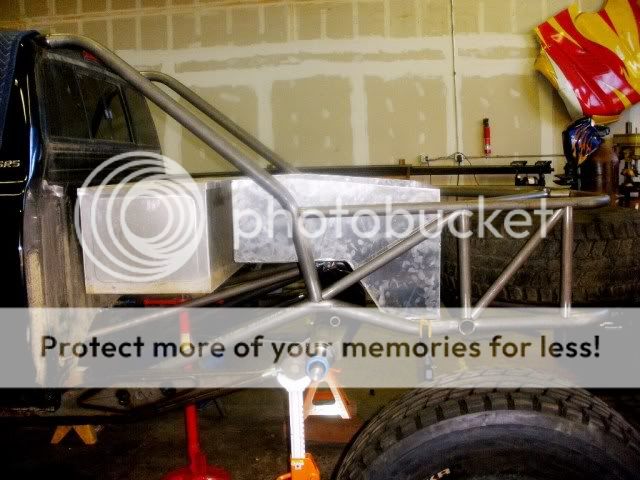

Next was to go up to full bump and start running tubes. He will have 5-6" of clearance at the lower link mount at full bump which results in 13.5" of uptravel. The rear tires are going to be setup like bj baldwins newest TT with a strapped in lower tire and spinner top tire.

I decided to cut the rear tube section i had made to put in a tube for the sway bar that will be on the truck (going through Cone Industries for the sway bar). The location will allow a 22-26" sway bar arm and will have multiple mounting locations for the heim to adjust the stiffness.


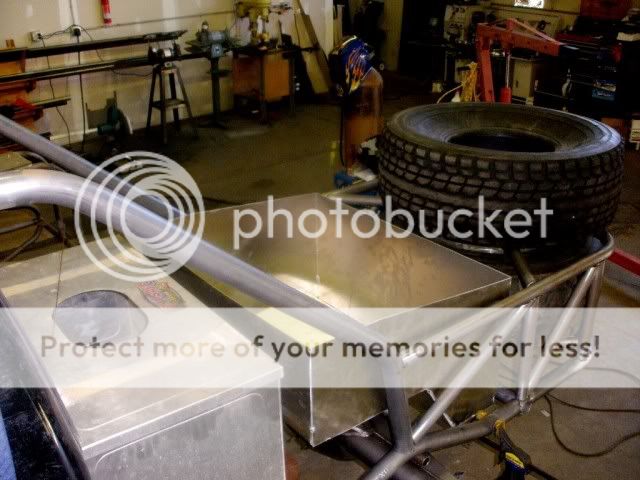

Started building a storage box that will have a front section to hold 2 optima batteries, a full fluids tray, and a 5lb powertank (oh ya the Currie has an ARB). The rear section will be open for tool bags and whatever else. The reason for enclosing everything is because it rains a lot in his area and mud can be very messy.

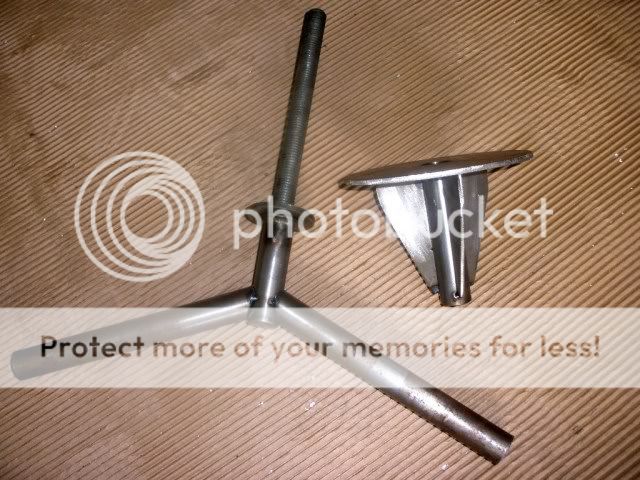

Today i pretty much finished up with the spinner lock down. I didnt want to make a mounting plate for the rim to sit on because they are hard to toss a tire up on top of and locate plus it would have been raised up which will get in the way of a cargo area if the top tire is removed. Im going to make large aluminum cargo tray that he can bolt down quickly in place of the top tire for more storage area. The spinner is two parts and it spins pretty easily and doesnt take much effort to get the sidewalls on the tire to smash down (and theyre 10ply sidewalls). I may toss in a delrin washer if painting the parts makes them harder to spin. Its a cone shape so the spinner helps to locate the wheel and holds it down tight. First spinner ive actually ever made, i usually just strap.


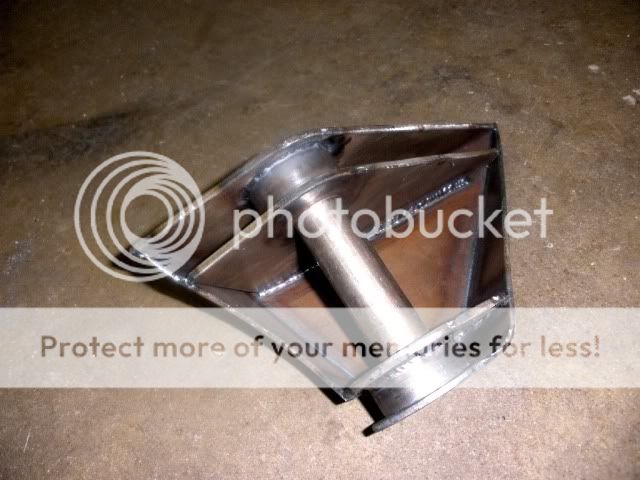

I got on the trailing arm frame mount today too. Its not finished yet as i am going to wrap the double plate edges to fill it in, then im going to add a bottom plate, and some gussets that will attach to the bottom of the frame rail. I should have finished pics of them tomorrow and start on the upper link mounts.
